V3 POP-UP TENT

V3 POP-UP TENT

V3 S5 POP-UP TENT

V3 HEXA HEXAGONAL TENT

VITABRI V3 POP-UP TENT

VITABRI V3 POP-UP TENT

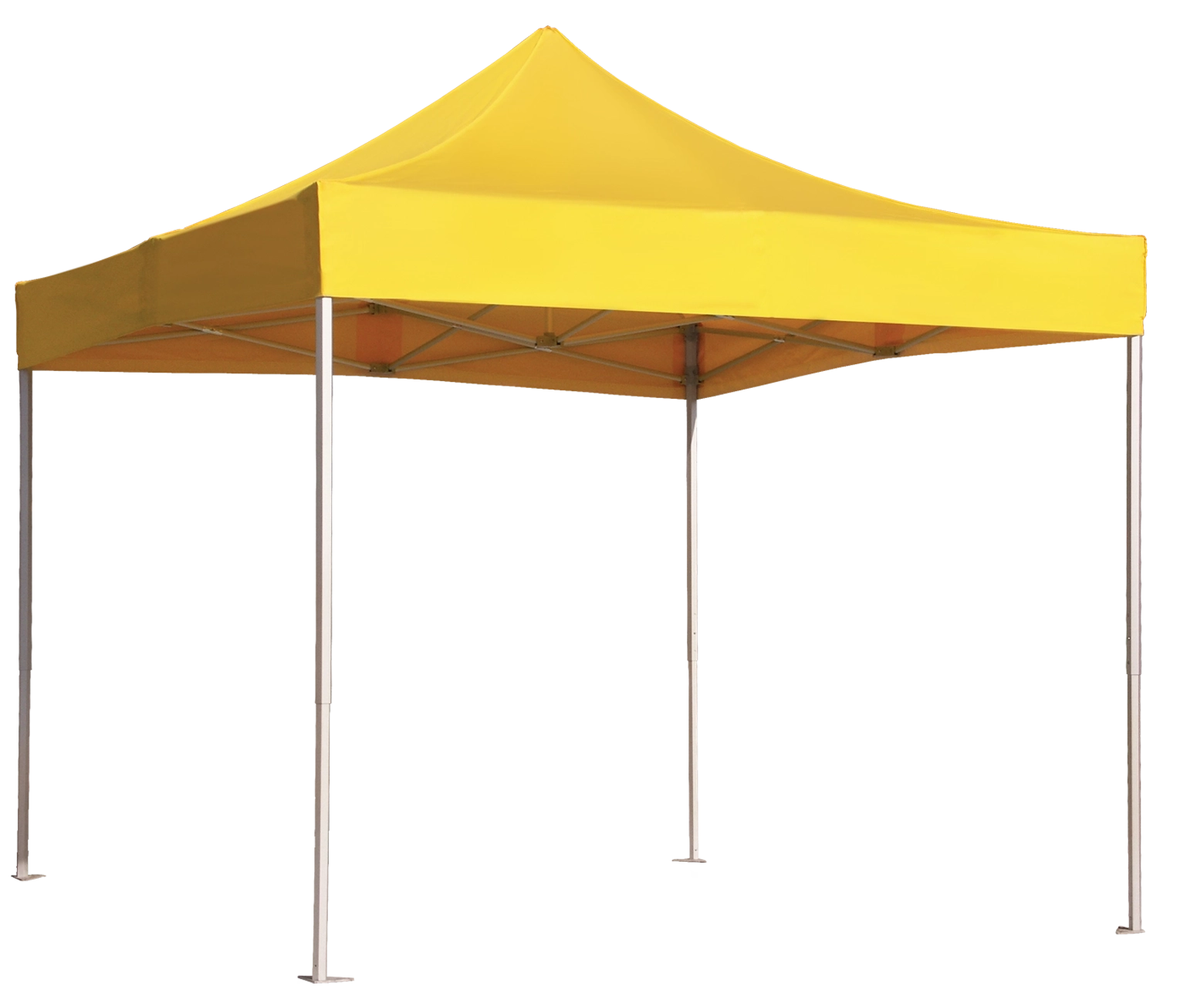

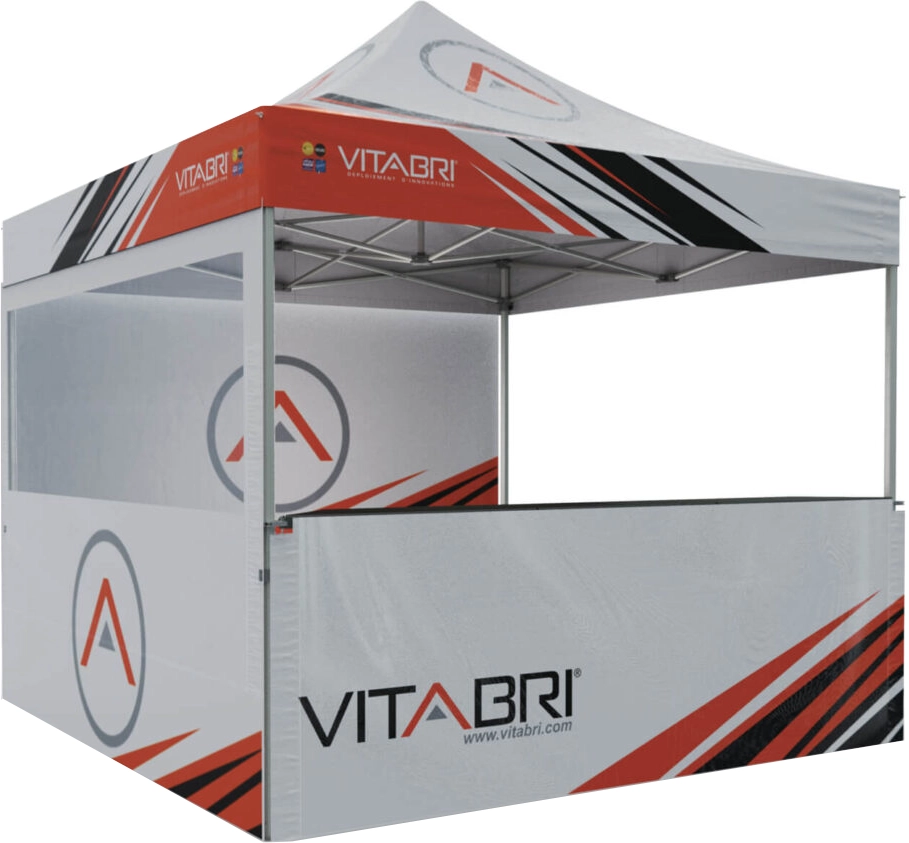

The V3 pop-up tent is the result of VITABRI’s years of experience in quality, robustness, and simplicity.

VITABRI pop-up tent structures rank among the top of the most appreciated structures in the world. The VITABRI V3 structure is 100% aluminum and fully reinforced.

The V3 pop-up tent is perfect for professional use, with a stable and highly durable structure.

5-year warranty for VITABRI V3 structures!

V3 SPECIFICATIONS:

Ø 50MM HEXAGONAL LEG

INTERNAL REINFORCEMENTS OF THE CROSSPIECES

STRONG POLYCARBON FASTENERS

REINFORCED CROSSPIECE JOINTS

SPRING STRUCTURE LOCKING SYSTEM

3-STEP STRUCTURE ADJUSTMENT

HIGHLY STABLE ALUMINUM FOOT

V3 SPECIFICATIONS:

High-quality hard aircraft aluminum, T6 6061 alloy.
Hexagonal leg profile with a diameter of 50 mm.
The thickness of the aluminum wall is as much as 2 mm.
Durable polycarbonate fasteners (polypropylene with fiberglass), not to be confused with plastic Chinese equivalents.
Externally reinforced crosspiece joints.
V3 semi-oval crosspieces that do not cross the coating.
The structure is bolted with stainless-steel self-tapping INOX screws (no rivets, no risk that the V3 structure will come loose).
Spring-loaded structure locking system
3-step leg height adjustment
Stable and shatterproof triangular leg foot (125 x 125 mm).
V3 resistance to winds of up to 100 km/h.
18 different sizes: from 2 to 32 m².
5-year warranty for VITABRI V3 structures and lifetime after-sales service

VITABRI V3 TENTS – TECHNICAL SPECIFICATIONS

V3	Actual size (m)	Folded size (m)	Weight [frame + roof] (kg)	Height 3 steps of adjustment (m)	Total height 3 steps of adjustment (m)	Number of poles	Number of legs	Possibility to raise the structure
1.3x1.3m	1,31 x 1,31	0,35 x 0,35 x 1,65	16,2	1,88 – 2,03	2,80 – 2,96	1	4	+ 50 cm
2x2m	2,13 x 2,13	0,35 x 0,35 x 1,56	24,5	1,88 - 2,03	3,02 - 3,18	1	4	+ 50 cm
2x3m	2,13 x 3,16	0,35 x 0,5 x 1,56	29,7	1,88 - 2,03	3,02 - 3,18	2	4	+ 50 cm
2x4m	2,13 x 4,19	0,35 x 0,6 x 1,56	35,5	1,88 - 2,03	3,02 - 3,18	3	4	+ 50 cm
2.5x2.5m	2,55 x 2,55	0,35 x 0,35 x 1,56	24,8	1,88 - 2,03	3,10 – 3,26	1	4	+ 50 cm
2.5x3.8m	2,55 x 3,77	0,35 x 0,5 x 1,56	32,3	1,88 - 2,03	3,10 – 3,26	2	4	+ 50 cm
2.5x5m	2,55 x 5,02	0,35 x 0,6 x 1,56	43,5	1,88 - 2,03	3,10 – 3,26	3	6	+ 50 cm
2.8x2.8m	2,83 x 2,83	0,35 x 0,35 x 1,56	27,3	1,88 - 2,03	3,10 – 3,26	1	4	+ 50 cm
2.8x4.2m	2,83 x 4,21	0,35 x 0,50 x 1,56	36,1	1,88 - 2,03	3,10 – 3,26	2	4	+ 50 cm
2.8x5.6m	2,83 x 5,62	0,35 x 0,60 x 1,56	47,4	1,88 - 2,03	3,10 – 3,26	3	6	+ 50 cm
3x3m	2,96 x 2,96	0,35 x 0,35 x 1,56	28,4	1,88 - 2,03	3,10 – 3,26	1	4	+ 50 cm
3x4.5m	2,96 x 4,41	0,35 x 0,50 x 1,56	37,4	1,88 - 2,03	3,10 – 3,26	2	4	+ 50 cm
3x6m	2,96 x 5,87	0,35 x 0,60 x 1,56	49,3	1,88 - 2,03	3,10 – 3,26	3	6	+ 50 cm
