V3 S5 POP-UP TENT

VITABRI V3 S5 POP-UP TENT

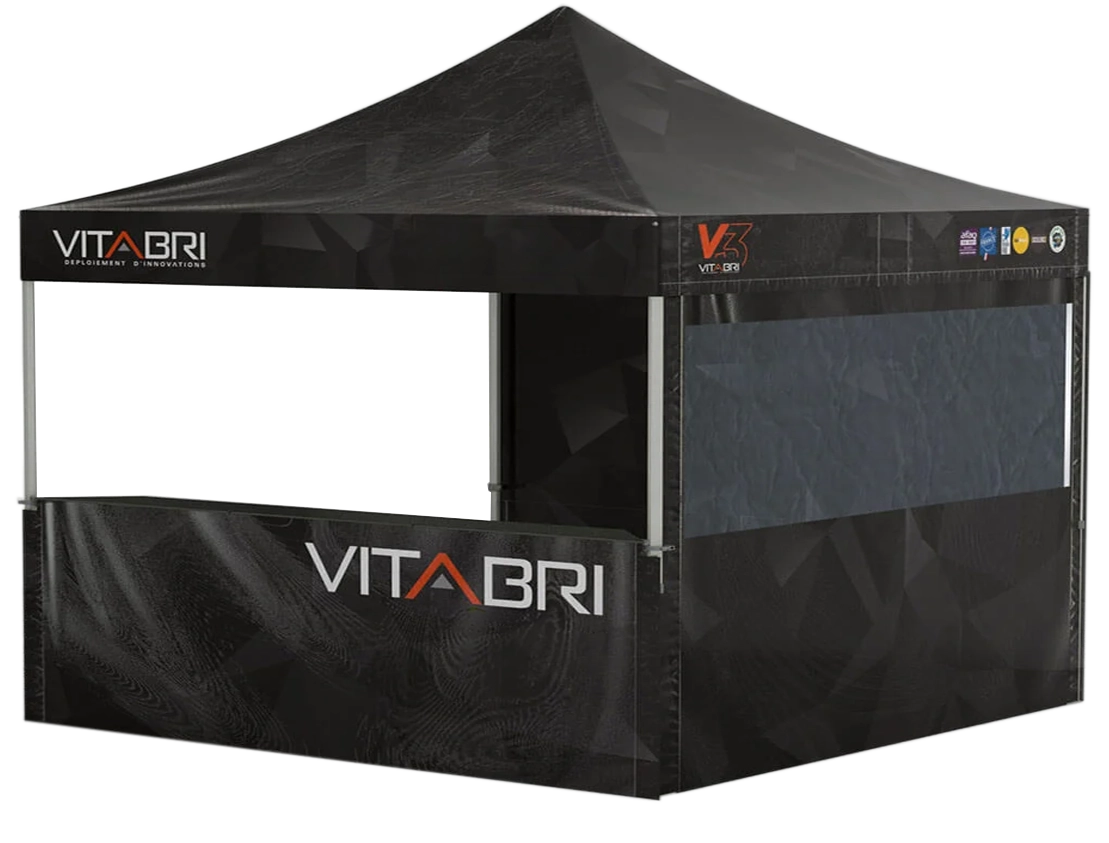

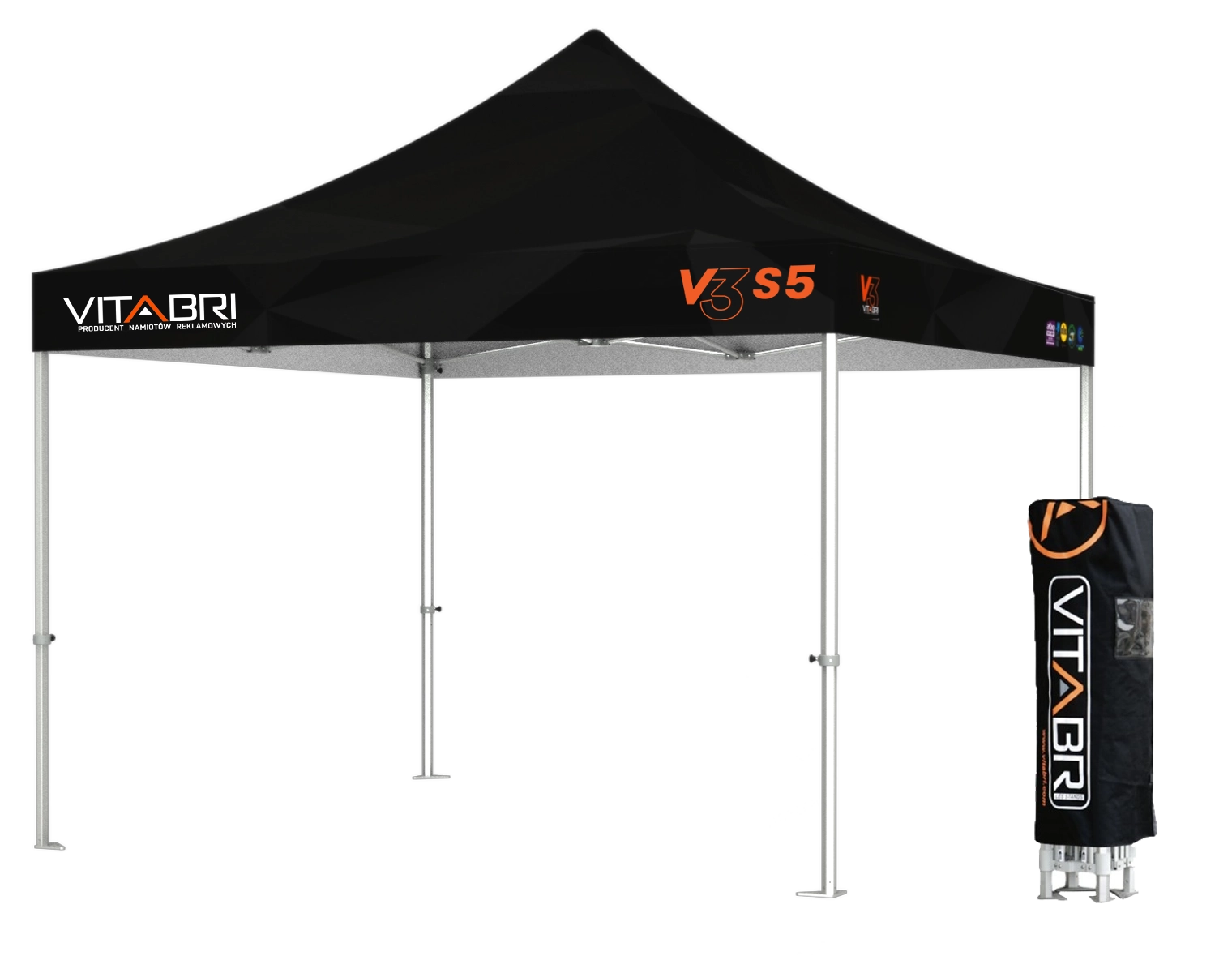

VITABRI V3 S5 pop-up tent

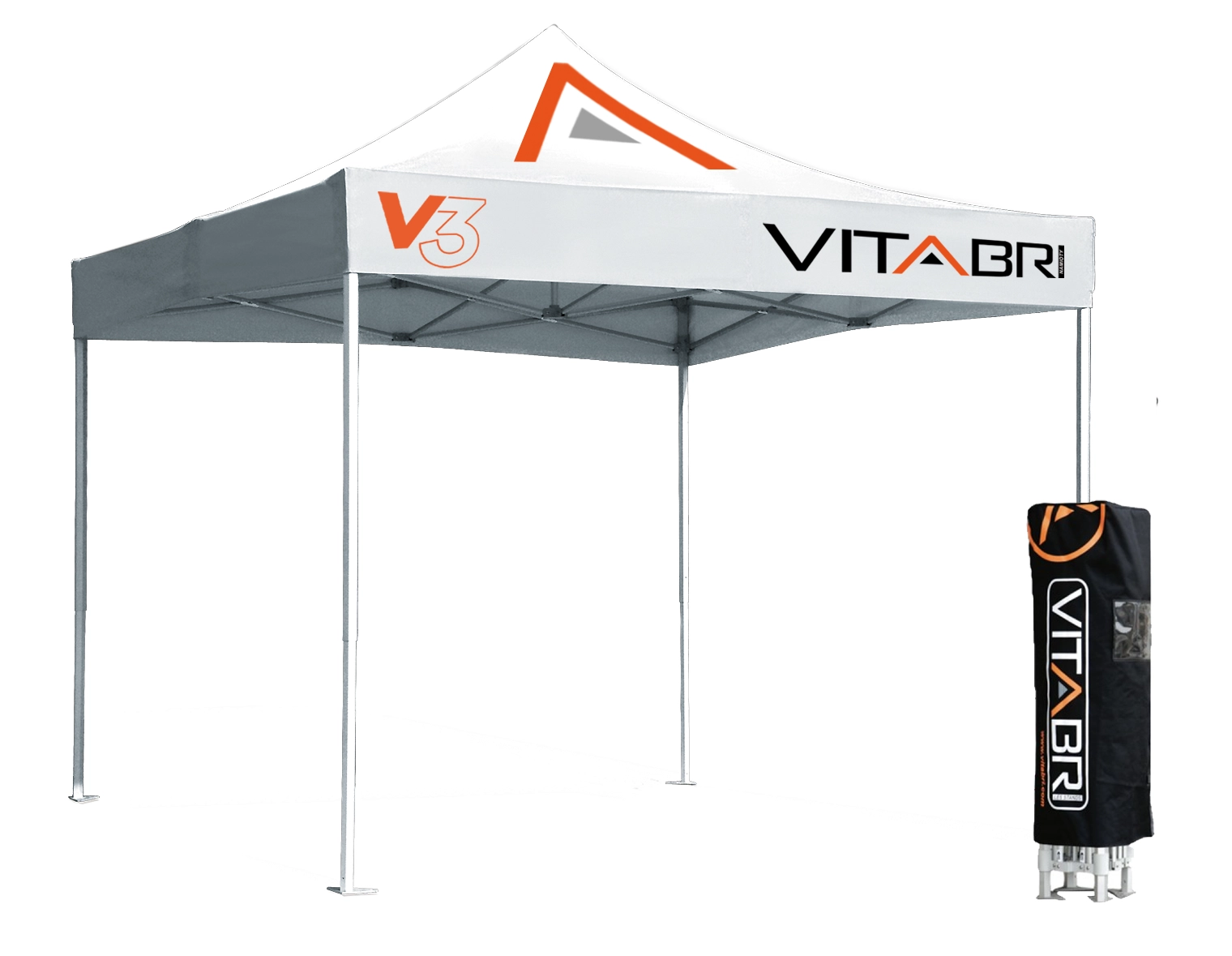

The V3 S5 pop-up tent is a combination of the features of the VITABRI V3 tent and the modern model of the VITABRI V5 tent.

The V3 S5 model only comes in 3 sizes (4×4 m, 4×6 m, and 4×8 m). The maximum area of the tent is 32 m². It takes 30 seconds to set up the V3 S5 tent.

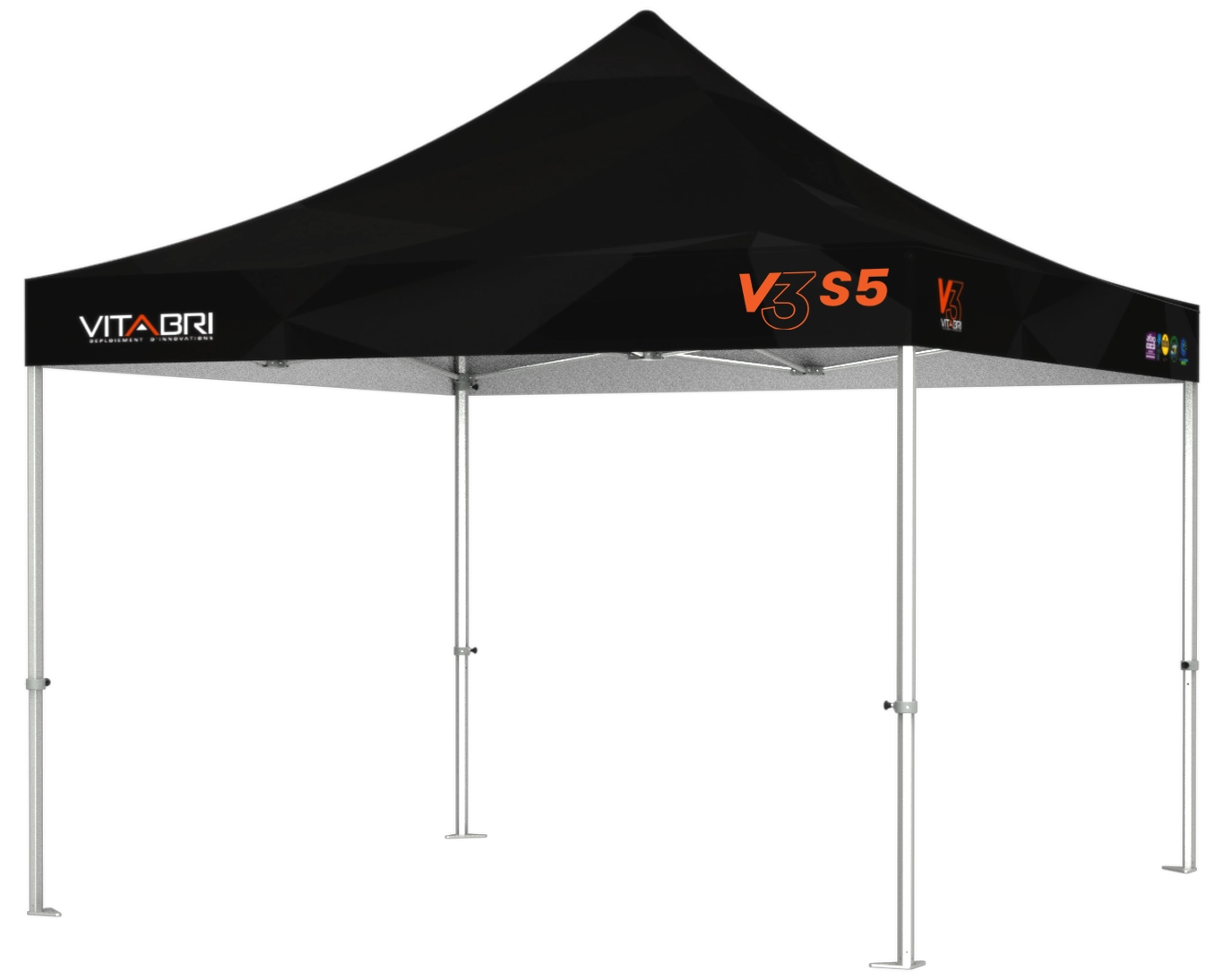

Due to the large leg spacing (4 m), 6-fold reinforced crosspieces from the V5 model are used. The V3 S5 structure additionally has guy-rope holders screwed directly into steel structures and a 5-stage height adjustment system using special locking brackets.

5-year warranty for VITABRI V3 structures!

V3 S5 – TECHNICAL SPECIFICATIONS

Ø 50 MM HEXAGONAL LEG

S5 6-FOLD REINFORCED CROSSPIECES

STEEL GUY-ROPE HOLDER

STRUCTURE LOCKING SYSTEM

5-STEP STRUCTURE ADJUSTMENT

REINFORCED POLYCARBON CONNECTORS

HIGHLY STABLE ALUMINUM FOOT

V3 S5 SPECIFICATIONS:

High-quality hard aircraft aluminum, T6 6061 alloy.
Hexagonal leg profile with a diameter of 50 mm.
The thickness of the aluminum wall is as much as 2 mm.
Durable polycarbonate fasteners (polypropylene with fiberglass), not to be confused with plastic Chinese equivalents.
6-fold reinforced crosspieces along the entire length, finished with polyamide.
Externally reinforced crosspiece joints.
PV3 semi-oval crosspieces that do not cross the coating.
The structure is bolted with stainless-steel self-tapping INOX screws (no rivets, no risk that the V3 structure will come loose).
Snap-in locking system.
5-steps leg height adjustment.
Metal rings in the structure to attach guy-ropes.
Stable and shatterproof triangular leg foot (125 x 125 mm).
3 different sizes of V3 S5 structure: 4×4 m, 4×6 m, and 4×8 m.
5-year warranty for VITABRI V3 S5 structures and lifetime after-sales service.

Thanks to the combination of the parameters, the V3 structure is lightweight and mobile, yet remarkably resistant.

VITABRI V3 S5 TENTS – TECHNICAL SPECIFICATIONS

V3 S5	Actual size (m)	Folded size (m)	Weight [frame + roof] (kg)	Height 3 steps of adjustment (m)	Total height 3 steps of adjustment (m)	Number of poles	Number of legs	Possibility to raise the structure
4 x 4m	3,99 x 3,99	0,48 x 0,48 x 2,15	40,8	2,03 - 2,41	3,98 – 4,36	1	4	-
4 x 6m	3,99 x 5,96	0,48 x 0,70 x 2,15	51,3	2,03 - 2,41	3,98 – 4,36	2	6	-
4 x 8m	3,99 x 7,95	0,48 x 0,90 x 2,15	62,7	2,03 - 2,41	3,98 – 4,36	3	6	-
